Trim to Surface (3-D)

3-D Standard > Process > Trim to surface

The active part is trimmed to one surface.

  1. Identify the part to be trimmed.
  2. Specify the trim surface.
  3. On the selected part, specify a point on the side to be trimmed.

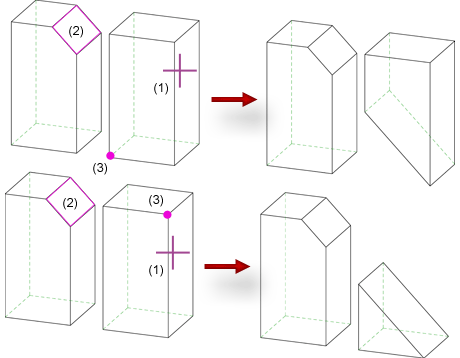

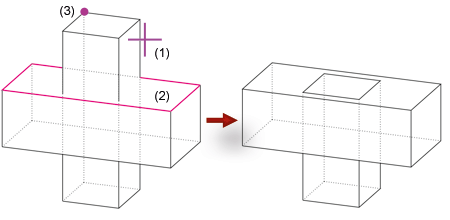

Left: (1) Cuboid to be trimmed; (2) Surface for the trimming; (3) Identified point
Right: Result
