Clone and Rotate (2-D)

2-D Part > Clone > Clone part, Rotate

The Rotate function creates the cloned parts from the original part by copying and simultaneously rotating it about a point.

1. Specify the quantity and the union method.

You can address the clones as independent parts, i.e. non-unioned, or unioned in the active part. If you activate Create superordinate part, a new part (e.g. Group) to which the clones and the original part are subordinate is created in the ICN.

2. Identify the rotation point and enter the angle of rotation.

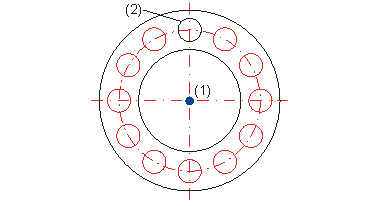

(1) Rotation point, angle of rotation 30°, number 12
(2) Original part

 Related Topics

Clone Part (2-D) • Clone and Move (2-D) • Clone and Mirror (2-D)
