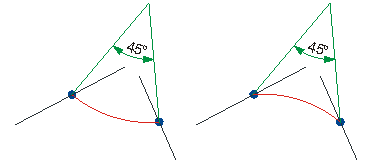

The arc was generated by identifying two points and entering the angle. There are 2 solutions.
Version 2102 - HiCAD 2-D | Date: 15/11/2016 | © Copyright 1994-2016, ISD Software und Systeme GmbH
