P/GE-P/GE-Radius (2-D)

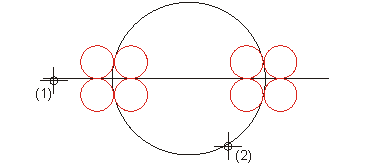

(1) First graphical element
(2) Second graphical element

Drawing a circle through 2 points (or 2 lines) and the radius
