P/GE-P/GE-P for Arc (2-D)

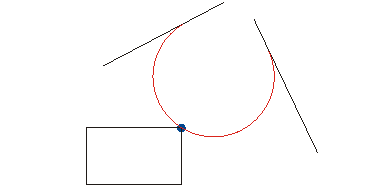

Circular arc constructed by identifying a point and two graphical elements
