Chamfer Dimensioning (2-D)

2-D Dimensioning + Text > Edit > Extras > Chamfer

When dimensioning chamfers, the angle is attached to the chamfer dimension.

  1. Identify the start and end points of the chamfer.
  2. Enter the chamfer angle.
  3. Define a point for the position of the dimension figure.

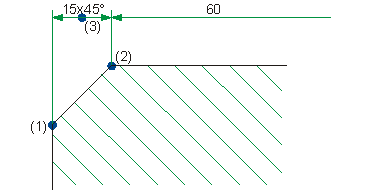

(1) Chamfer start
(2) Chamfer end
(3) Position of the dimension figure
