Angle Dimensioning, Chain Dimensions (2-D)

2-D Dimensioning + Text > Angle > Chain dimension, via lines

2-D Dimensioning + Text > Angle > Individual dimension > Chain dimension, via lines

This function generates dimensioning for several angles with the same vertex point for all further angles according to the first dimensioning.

1. Identify the two sides of an angle.
2. Define the point for the dimension arc.
3. Define the succeeding angles.

Common projection lines for two successive angles are only drawn once.

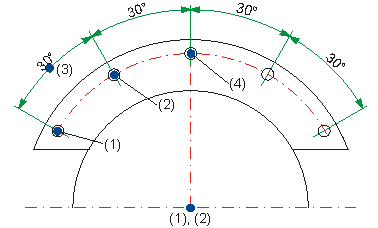

(1) First side identified using points
(2) Second side identified using points
(3) Dimension arc
(4) Succeeding point
