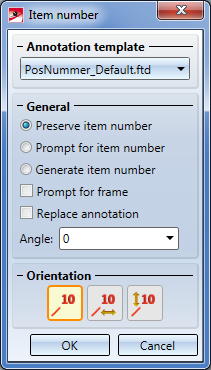

The dialogue window of the Itemize part function has been redesigned.
The functions that could previously be found in the lower area of the Item number dialogue window can now be found in the pull-down menu
of the Item. function in the Text function group, or in the context menu of an item number.
When you choose the options Prompt for item number and Generate item number, a warning icon
will be displayed. If you move the cursor over the icon, the following warning message will be shown:
This function assigns item numbers without checking for possible conflicts; i.e. conflicts with other items will not be recognized, so that different item numbers may be assigned to identical parts!
