Create Project (PDM in HiCAD)

HELiOS PDM > Project > New

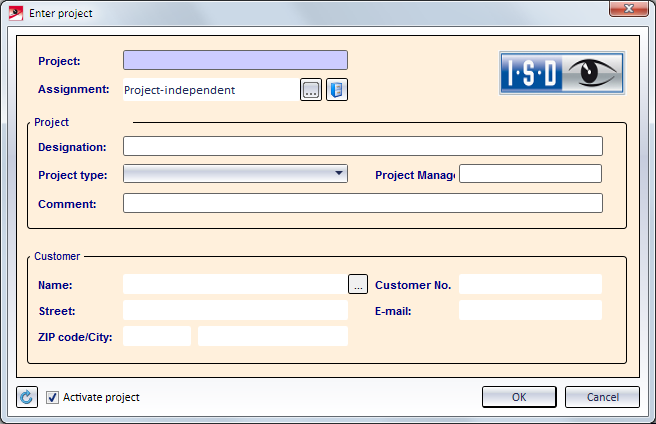

When you call this function on the HELiOS PDM tab of the HiCAD Ribbon, the Enter project mask will be displayed.

Enter the project data. Important: Do not forget to fill in the Designation field, as this input will be relevant for project search.

If a user-specific project is active, it will be shown in the project assignment. The new project will then be made a sub-project. You can also activate another project via the selection list or create a new superordinate project which is (project-independent).

The dialogue windows for projects are operated in the same way as those in the HELiOS Desktop.
