Transfer HELiOS Product Structure Attributes to HiCAD Article Attributes (PDM in HiCAD)

Attributes (e.g. item numbers) from the HELiOS product structures can be transferred to HiCAD parts if they are linked accordingly (e.g. to the respective item).

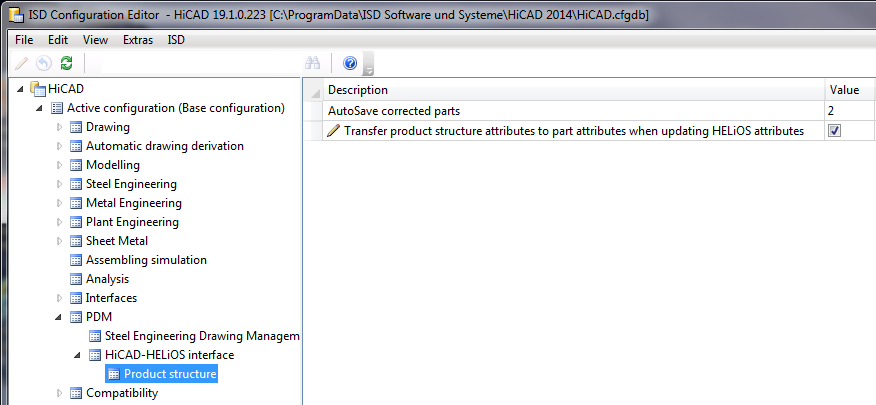

To do this, open the Configuration Editor (ISDConfigEditor.exe), select Active configuration (Base configuration) > PDM > HiCAD-HELiOS interface > Product structure > Transfer product structure attributes to part attributes when updating HELiOS attributes and activate the checkbox.

The transfer of product structure attributes to the corresponding HiCAD parts is only possible if the assembly has been referenced.
