Status Bar Information

The status bar at the bottom of the Catalogue Editor contains information about tables and catalogues.

If a table has been marked, the following information will be displayed:

1. Row number and name of the current field
2. Number of available Undo steps
3. Number of data records in the current table
4. The current time
5. Table ID
6. These field indicate whether the NUM or Scroll function key on your keyboard had been pressed

When you click the name of a catalogue in the Catalogue Editor, the hard disk number or the license ID will be displayed on the status bar:

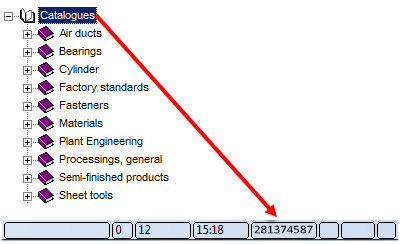

• If you mark the top level of the catalogue structure tree, the hard disk number will be shown:

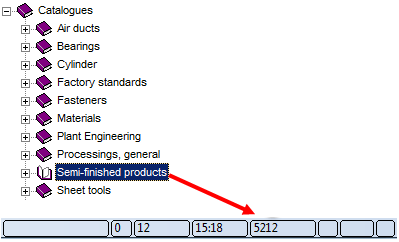

• If you mark one of the sub-catalogues in the tree structure, the license ID will be shown:

Select View > Status bar to hide or show the status bar.
