Divide Pipeline
Plant Engineering > Pipeline Tools > Change
> Divide pipeline
Use this function to cut a pipeline into two or several segments. Proceed as follows:
- Select the pipeline.
- Specify the desired division points.
- End the division point specification with a right-click.
Please note the following:
- This function can also be executed if only solid bodies are fitted.
- A pipeline division is also possible in case of "mixed" parts (i.e. partly with, partly without symbol bodies).

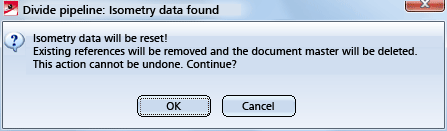

- Existing isometry data saved in the pipeline are recognized, and HiCAD issues an appropriate warning if required.
- If you click OK, pipeline referencings are automatically deleted and the corresponding HELiOS master data will be removed.
