Project: Catalogue Editor

Settings

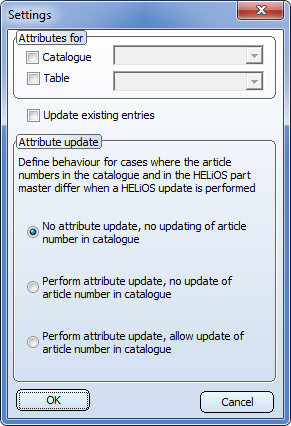

For the transfer of catalogues/tables to HELiOS you can optionally assign attributes for the catalogue attributes Catalogue name und Table namein the HELiOS Part Master Management. This serves the purpose of information provision. To define such assignments you use the HELiOS Settings function.

Attributes for

Here you determine whether, and if so, to which HELiOS attribute the catalogue/table name is to be assigned. If you want entries to be updated that already exist in HELiOS, activate the Update existing entries checkbox.

Attribute update

Here you can specify by activating the desired option how to proceed if the article numbers in the catalogue and in the HELiOS article master differ during the HELiOS update.

Please also note the HiCAD functions at Settings > Catalogue:

Functions of the Toolbar • Standard Parts and HELiOS (PDM)
