Project: HiCAD Steel Engineering

Lengthen/Shorten

Steel Engineering > Lengthen

You use the functions of this function group to

• lengthen or shorten beams,
• divide beams and
• union beams.

	Change length The beam length is changed by a defined value.
	Change beam length, via new total length The beam is lengthened or shortened by specifying the new total length.
	Change beam length, to point The beam is lengthened or shortened to an arbitrary 3-D point in the drawing.
	Divide beam once, flush The beam is divided by specifying the distance between the division point and the beam end. Clicking opens a pull-down menu with further Divide functions: Divide beam once, with clearance Divides a beam into 2 segments, with clearance or overlap if required. Divide beam several times, flush Divides a beam into several segments of equal length. The division is made flush, i.e. without gaps between the segments. Divide beam several times, with clearance Divides a beam into several segments of equal length. The division is made with clearance, i.e. with gaps of a defined width between the segments.
	Union Divided beams are unioned again.

Please note:

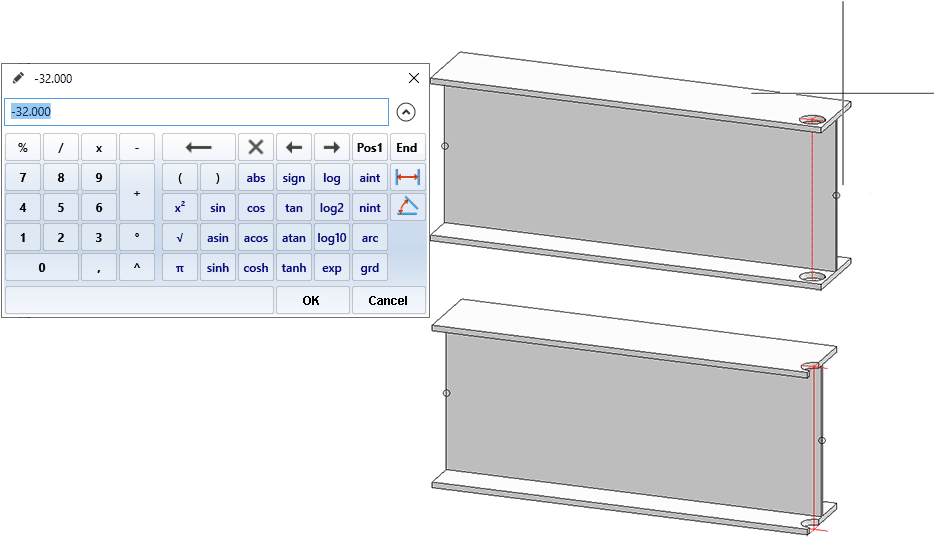

The length change functions are used to move the facets of the front contour of the beam. In certain cases, new facets can also be created and/or existing facets can be omitted. This is the case, for example, when the end of the beam is moved into the area of a hole by shortening it - as shown in the image below.

Process Beams (3-D SE) • Steel Engineering Functions
