Symmetry

2-D Part > 2-D HCM Constraints > Fix > Symmetric

Procedure:

1. First, identify the symmetry line.
2. Specify the element pairs that you want to have a symmetrical relationship.

The behaviour of the selected elements in subsequent operations, e.g. during dragging, is mirror-oriented.

Symmetry constraints are marked by "S".

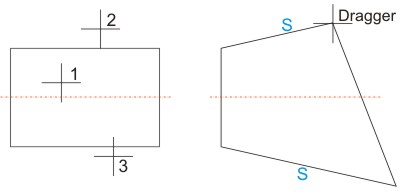

Fig.: Define/drag symmetry constraint

Define Positional Constraints
