Project: HiCAD Metal Engineering

Connections / Design Variants

"Civil Engineering functions" docking window > Metal Engineering/Facade Engineering

In the Civil Engineering functions docking window you can find the Metal Engineering / Facade Engineering entry.

When you expand all levels of this entry, the Design Variants for 3-D Metal Engineering and 2-D Metal Engineering will be displayed:

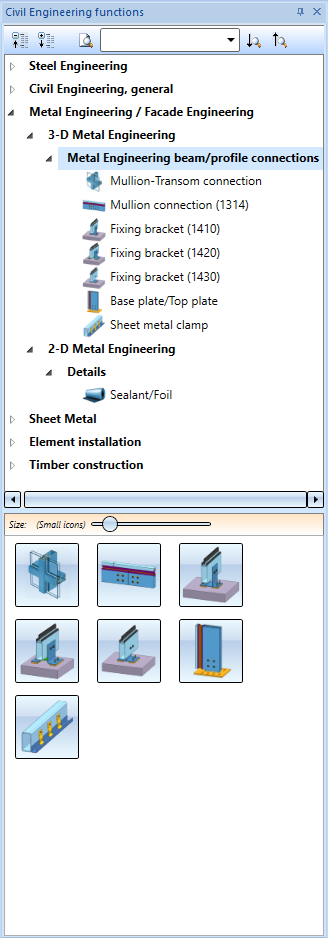

Civil Engineering docking window

Civil Engineering functions: Metal Engineering / Facade Engineering

The following design variants are available:

3-D Metal Engineering

• Mullion/-Transom connection
• Transom connection (1314)
• Fixing bracket (1410)
• Fixing bracket (1420)
• Fixing bracket (1430)
• Base plate/Top plate
• Sheet metal clamp

2-D Metal Engineering:

• Sealant / Foil

HiCAD Metal Engineering
