Edit Feature

You can make changes to a feature via the feature log in the ICN. Furthermore, you can also change parameters of a geometry like height, length, radius etc. via the parametric dimensions directly in the drawing. The relevant feature is then automatically adjusted.

You use the standard Windows procedures (click, Shift-click and Ctrl-click) to select the features in the feature log that you want to process and then call the desired function.

Change points

If you have used point options when, say, fitting standard parts, the point options used and their current coordinates are listed in the feature log.

You can make direct changes to the values of coordinates (x, y and z) from the Absolute and Relative point options. They refer to the processing plane noted in the feature log. To change a coordinate, open the pocket calculator by double-clicking the relevant entry. Then, enter the new coordinate.

The information in brackets after the Point... entry refers to the coordinate system of the log body and is purely informative.

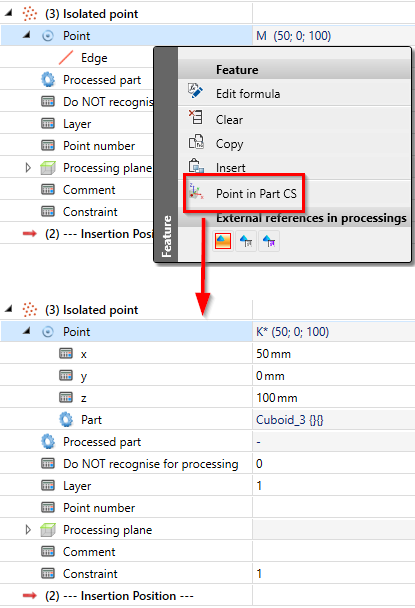

Point in Part CS

You also have the option of converting a selected point into a position according to the part coordinate system of the active part. For this purpose the function Point in Part CS is available in the context menu of the point option.

Activate/ deactivate feature

Logged features can be deactivated, i.e. they are not executed during construction (e.g. holes).

Deactivated features are not, however, irreversibly deleted from the feature log, but can be re-activated later.

To activate or deactivate a feature, choose Activate or Deactivate, respectively, from the context menu.

If the Calculate feature directly after change setting is inactive in the feature configuration, you can only flag the feature for deactivation and activation in the context menu. In this case, a

appears before the feature entry in the feature log. The deactivation/activation does not then take effect until the feature is recalculated.

Move features

You can change the order of features in a feature log by moving the features with Drag & Drop. You can also select several features (click features while holding down the CTRL or SHIFT key) and move them.

If the Calculate feature directly after change setting is inactive in the feature configuration, the features will initially only be pre-selected for moving. In such cases, the affected features will be marked with an asterisk *. The moving of features will only be performed after feature recalculation.

"Delete crosshairs" feature

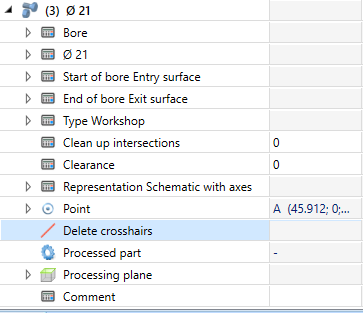

If one of the Delete crosshairs functions is applied to a crosshairs that has been automatically created by a different function, e.g. the insertion of a bore, this deletion will not be entered as a new feature, but as a sub-entry called Delete crosshairs beneath the creation feature:

To delete this processing step later, right-click the Delete crosshairs entry and choose Clear.

Comments

Each feature entry optionally contains a Comment. Here you can enter a free comment for this feature, which will be displayed at the feature

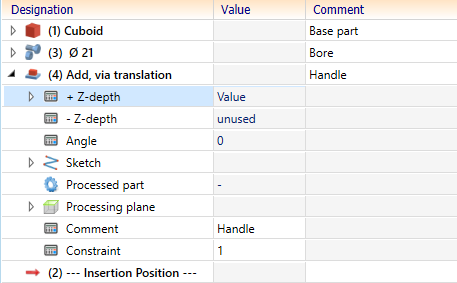

Each entry in the feature log contains a Comment entry. An entered comment is displayed here and can be changed or set by double-clicking on this line. If the multi-column display is activated, the comment is also displayed in a separate column called Comment. You can change the comment directly by clicking on this field. Please note here that comments can only be assigned for individual feature steps, not for individual values of a feature step. For this reason, the Comment field is grayed out and cannot be changed.
