Connect Sheets

Sheet Metal > Further functions > Extras > Connect sheets

With this function you can connect bent sheets with an own feature log. The prerequisite is that the sheet thickness, the material or semi-finished product match and the base sheet was created with one of the following functions:

• Base sheet,
• Sheet along sketch,
• Sheet from sketch.

First activate a sheet and then call the function. Then select the sheets to be attached. Finish the selection by pressing the middle mouse button.

The feature log of the added sheets is hung under the log of the active sheet and the added sheets are deleted. The creation feature and the other feature steps such as Attach flange are retained.

In the part structure, the flanges and bend zones are also attached to the active sheet. The added sheets are deleted from the part structure.

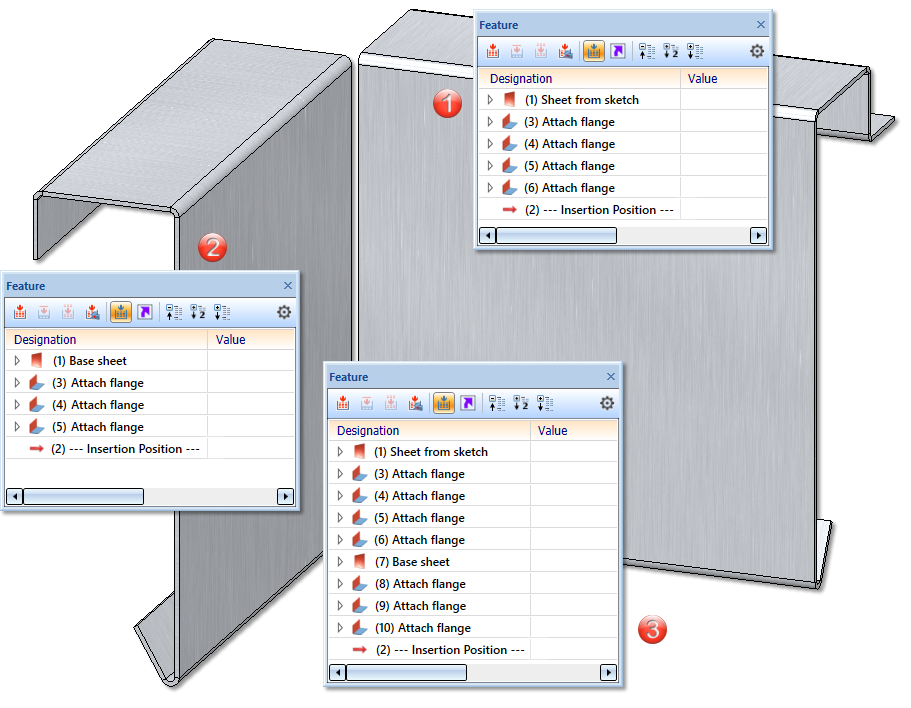

(1) Active sheet
(2) Added sheet
(3) Feature log after the connection. The feature of the second sheet is added.
