Project: HiCAD 2-D

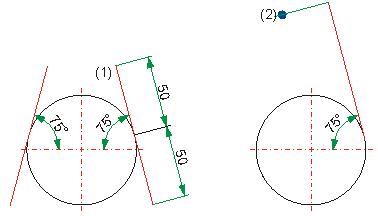

Tangent Angle-Circle-Length (2-D)

(1) The length is marked off in both directions
(2) You use the right mouse button to to define the direction and length of the tangent.
