CP-P-P for Arcs (2-D)

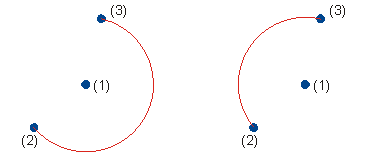

First solution, positive orientation; second solution, negative orientation

(1) Centre point
(2) Start point
(3) End point
