Office Interface: HELiOS Menu

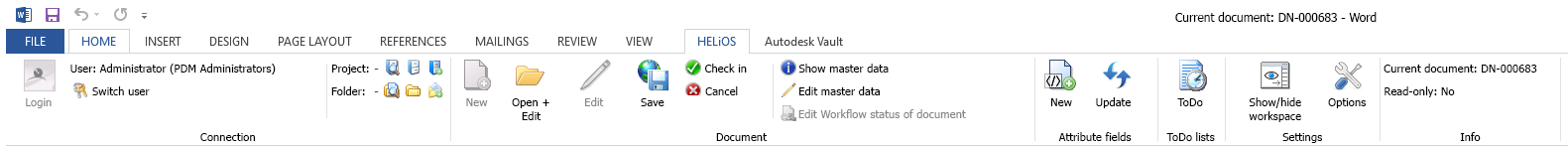

The HELiOS Add-In for Word, Excel or PowerPoint contains the following menu items:

User Management. Log in to establish the link to the HELiOS database and be able to use the functions of the HELiOS menu in your Office application.

In the pull-down menu you will find the Switch user function, enabling you to change the user while working with the program.

Switch user

Click on this button to switch the user during the current session.

Above the button for the switching of the user, the currently logged on user is displayed, e.g. User: Designer1.

Project:

Folder:

With a click of the respective icon you can work in a Project-independent or Folder-independent mode.

In such cases only a hyphen ( - ) will be displayed next to Project: or Folder:, respectively.

Clicking on opens the mask for the project search, and clicking on opens the mask for the folder search mask, to allow you to assign the current Office document to a specific Projector Folder context.

Clicking on New (Project) or New (Folder) allows you to create new HELiOS projects or folders in your Office application.

New

Opens the HELiOS mask for document data input, enabling you to create a new document (or the currently open document in Office) in the HELiOS database.

Open + Edit

Opens the HELiOS mask for document data search, enabling you to select and open files that already exist in the database.

In the pull-down menu you can find the Close function, enabling you to close the currently open document.

If the selected document is linked to several articles, an additional dialogue for the selection of the article context will be displayed.

Open, read-only

Opens a document via the HELiOS search mask in read-only mode. Editing will not be possible.

You can find the function in the pull-down menu of the Open + Edit function.

Edit

If a read-only document has been opened in an Office application, you can click Edit to enable editing of the document. In this state the document will be locked against editing by other users.

Save

Saves the current document to the database. If the document is saved for the first time, it needs to be entered into the database as a new document via the document data input mask.

Check-in

The edits to the (opened) document will be saved and transferred to HELiOS.

Cancel

The editing of the (opened) document will be cancelled, edits will be discarded. The last saved state in HELiOS will be loaded.

Show master data

Opens the document detail mask for the active Office file.

Edit master data

Opens the document master data mask in editing mode (compare with document data input).

Edit workflow

Displays the workflow for the document. In the Execute test step area you can choose between the options Request checkup, Grant approval or Correction in the Office environment.

New

Please note:

The Attribute fields function group with the functions New and Update can only be found in Word and Excel.

Update

ToDo

Opens the ToDo list for the active document.

Show/hide workspace

This function opens the HELiOS Workspace for the HELiOS-MS Office interface.

Options

Opens the HELiOS options dialogue with Settings for Workspace, Settings for document and Attribute assignments.

In the Connection function group you can see, besides the Login button, which user is currently logged in (including his/her group membership).

On the right, in the Info field, the HELiOS document number of the open document is displayed. Here you can also see the file name of the current document and its status (Read-only: No or Yes).

Please note:

Please also read the information given in the Office Interfaces: Attributes topic.

If the HELiOS menu is not available in your MS Office application although you have installed the interface beforehand, a manual activation of the Add-In may be required - please see Installation and Activation of the Office Interface.

> Feedback on this topic

	Login	User Management. Log in to establish the link to the HELiOS database and be able to use the functions of the HELiOS menu in your Office application. In the pull-down menu you will find the Switch user function, enabling you to change the user while working with the program.
	Switch user	Click on this button to switch the user during the current session. Above the button for the switching of the user, the currently logged on user is displayed, e.g. User: Designer1.
	Project: Folder:	With a click of the respective icon you can work in a Project-independent or Folder-independent mode. In such cases only a hyphen ( - ) will be displayed next to Project: or Folder:, respectively. Clicking on opens the mask for the project search, and clicking on opens the mask for the folder search mask, to allow you to assign the current Office document to a specific Projector Folder context. Clicking on New (Project) or New (Folder) allows you to create new HELiOS projects or folders in your Office application.
	New	Opens the HELiOS mask for document data input, enabling you to create a new document (or the currently open document in Office) in the HELiOS database.
	Open + Edit	Opens the HELiOS mask for document data search, enabling you to select and open files that already exist in the database. In the pull-down menu you can find the Close function, enabling you to close the currently open document. If the selected document is linked to several articles, an additional dialogue for the selection of the article context will be displayed.
	Open, read-only	Opens a document via the HELiOS search mask in read-only mode. Editing will not be possible. You can find the function in the pull-down menu of the Open + Edit function.
	Edit	If a read-only document has been opened in an Office application, you can click Edit to enable editing of the document. In this state the document will be locked against editing by other users.
	Save	Saves the current document to the database. If the document is saved for the first time, it needs to be entered into the database as a new document via the document data input mask.
	Check-in	The edits to the (opened) document will be saved and transferred to HELiOS.
	Cancel	The editing of the (opened) document will be cancelled, edits will be discarded. The last saved state in HELiOS will be loaded.
	Show master data	Opens the document detail mask for the active Office file.
	Edit master data	Opens the document master data mask in editing mode (compare with document data input).
	Edit workflow	Displays the workflow for the document. In the Execute test step area you can choose between the options Request checkup, Grant approval or Correction in the Office environment.
	New	Please note: The Attribute fields function group with the functions New and Update can only be found in Word and Excel.
	Update
	ToDo	Opens the ToDo list for the active document.
	Show/hide workspace	This function opens the HELiOS Workspace for the HELiOS-MS Office interface.
	Options	Opens the HELiOS options dialogue with Settings for Workspace, Settings for document and Attribute assignments.
