Kisters ViewStation

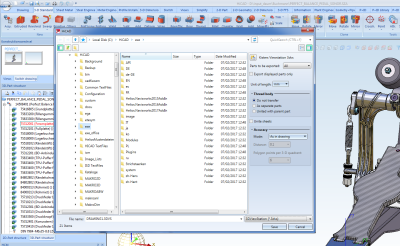

Keyword Link IconSearch Index You can use the export dialogue for 3-D interfaces (STEP, ...) to export HiCAD drawings to the 3DVS format and open them in the 3DViewStation of the Viewer provider KISTERS.

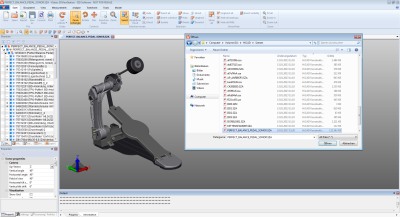

Kisters 3D ViewStation is also able to read HiCAD data formats (SZA and KRA).

Parameter for export

One file per part

Here you determine whether each node of the drawing is to be saved as a separate file or not. The file name you select is automatically extended by a numbering at the end.

Export displayed parts only

Select whether the entire drawing or only the currently displayed parts are to be exported.

Unit of length

mm, cm, m or inch

Mode

In the Accuracy area you can specify a Mode for polyhedron approximation:

  • Polygon points per quadrant: Enter the number of polygon points (at least 2). The default setting is 6.
  • Via distance tolerance: Enter a tolerance in the Distance field (Default: 0.1) .
  • Via distance tolerance with minimum number: Enter a tolerance in the Distance field , and the minimum value in the Polygon points per 3-D quadrant field.
  • Via distance tolerance with maximum number: Enter a tolerance in the Distance field , and the maximum value in the Polygon points per 3-D quadrant field.



Polygon points per quadrant

Distance



Please note:
