Process Print Jobs

The following tabs of the HELiOS-PrintClient enable you to process print jobs:

Print/Plot
Log

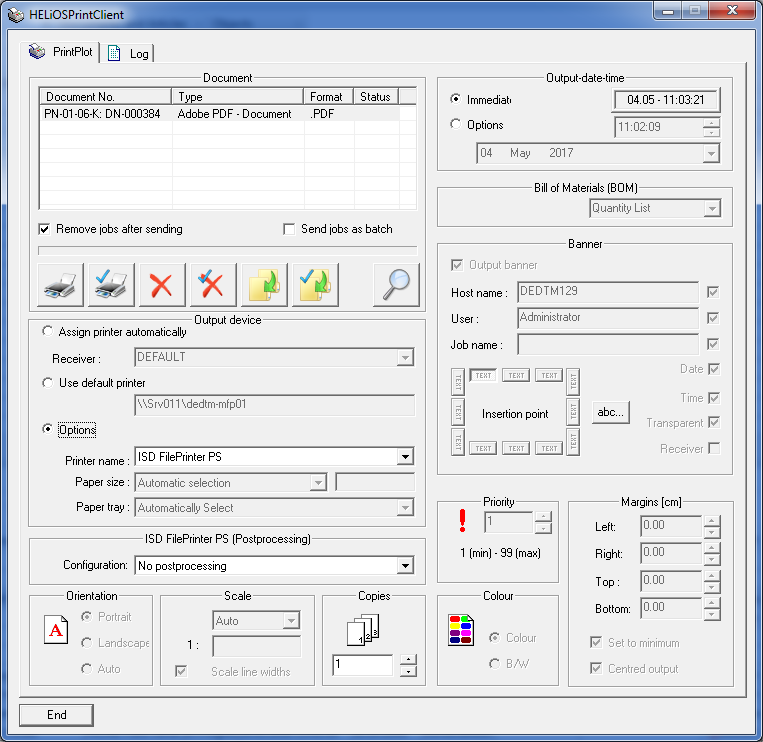

Print/Plot

Beneath the print/plot job list (with the columns Document number, Type, Format, Status providing additional information on the jobs) you can activate or deactivate the following 2 options:

Remove jobs after sending

If this checkbox has been activated (default setting), print jobs will be deleted from the list after their sending and processing. Deactivate this checkbox if you want print jobs to remain in the list after their sending and processing. This allows you to repeat the print job directly in the PrintClient dialogue window.

Send jobs as batch

If this checkbox has been activated, series of print jobs sent from your Client will be sent and processed as a batch, without interfering with print jobs of other Clients.

The following function buttons are displayed beneath the panel listing the documents to be printed:

	Print all jobs		Apply current settings to all jobs
	Print selected jobs		Apply current settings to selected jobs
	Delete all jobs		Find
	Delete selected jobs

You can also call this function via a pop-up menu that can be activated by right-clicking a document.

Output device	Dependent on the type of document
Receiver	Enables you to select one of the configurations offered by the HELiOS Spooler.
Use default printer	The Standard printer of the Spooler will be used (analogous to the standard Printer in Windows)
Selection	Can only be specified for HiCAD drawings, otherwise Auto
ISD FilePrinter PS (PostProcess)	In the Configuration selection field you can specify a configuration file that regulates the PostScript output to another file format (e.g. PDF). The corresponding system files for the respective file format outputs are located in the directory \ISDFilePrinterSettings\ of the Spooler configuration and have the file extension ".PostProcess" (e.g. "ISD FilePrinter PS.PDF.PostProcess" for PDF). If required, you need to adjust the specifications of the output paths and the existing PostScript version of your individual system environment. In the selection field you can only choose PS output configurations that have been activated in the corresponding PostProcess file (option is greyed out by default).
Orientation	Portrait or Landscape
Copies	Specifies number of copies
Scaling	Enables you to scale document printouts and line thickness (for HiCAD drawings only)

Output-date-time

The HELiOS Print Client enables you to set a time and a date for the output of specific print jobs, allowing a processing of large files at night or during the weekend.

Immediately: The Print Client immediately processes the print job.
Select: You can set the time and date at which the order should be processed.
Banner: This function is only available for HiCAD drawings.

Activate the Output banner checkbox to print a title block of a drawing.
Select the appropriate checkbox.

You can print the following fields: Host name, user, job name (can be entered manually), date and time.

Select Transparent for a translucent background for the banner.
Specify the Insertion point by marking the appropriate TEXT button.

Click the Abc.. to specify extended settings regarding text formatting (bold, italic, underline, font, character set, text height) and text alignment (rotation in degrees and XY-displacement). The specifications are made relative to the insertion point. Insertion points 3, 8, 9 will result in a rotation of +90°, insertion points 11,7,10 in a rotation of - 90°. The reference point is located at the leftmost side of the text base line.

Priority, Margins, Colour

These functions are only available for HiCAD drawings.

Priority: You can determine the sequence in which print jobs are processed. The lowest number indicates the highest priority.
Colour: Specify whether the printout will be black/white or coloured (depends on output device setting).
Margins: If you select the Set to minimum option (checkbox), margins can no longer be set. The print area of the selected output device will be accepted.

If the Set to minimum checkbox is not activated, the width of margins can be set.

Select Centred output to place the drawing in the middle of the print area.
