Close Corner with Drainage Area (3-D SM)

Sheet Metal > Process corner > Drainage area

This function closes open corners that are created when adding flanges to sheets. The bend zone is also closed at the same time.

  1. Identify the abutting edges of both sheets.

The corner is then closed.

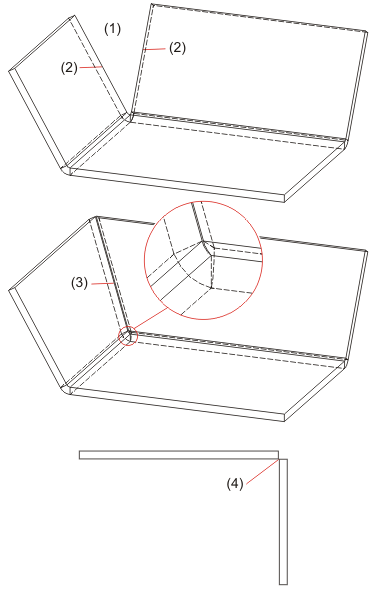

(1) Open corner
(2) Abutting edge
(3) Closed corner with drainage area
(4) Top view of the closed corner
