Presentation Options (3-D)

Images of 3-D models are frequently needed for presentations at trade fairs, for product catalogues, Internet presences etc. HiCAD provides different options here:

Lighting and shading
Assign suitable colours to your model. Use the HiCAD Colour Editor to define your own colours and materials: Select Drawing > Others > Extras >Colour Editor. You can also assign textures to your model.
Use the Graphic window function to set the background individually and to illuminate the 3-D model optimally with a minimum of slider movements (on the basis of OpenGL) .Click the icon and select Colour settings.
Or use the functions of the Lighting (3-D) toolbar.
Shade the model using the 3-D View Functions.
Save the model as a pixel graphic (e.g. using CTRL + C).

If required, you can simulate environments by assigning a panorama to your model. The surfaces of your model can then mirror the environment.

Creating VMRL files, e.g. for the Internet
Motion simulations and Physical simulations
Assembling and Transport simulations
Export and further processing of the 3-D model, with the rendering program Gamma Ray, including animations

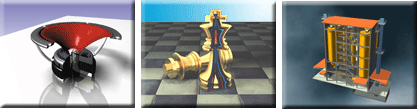

3-D models, processed with Gamma Ray

Creation of 3-D PDF files for an interactive representation of 3-D model

In this way, the models can be viewed and evaluated from all sides, as well as moved, rotated, zoomed etc., even without HiCAD.
