Lengthen FFS Minimally (3-D)

3-D Standard > Tools > Surface > Surfaces, Further... > Lenghten FFS minimally

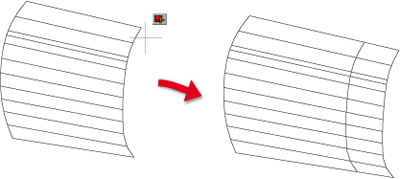

Use this function to lengthen non-intersecting freeform surfaces.

  1. Identify the freeform surface.
  2. Determine the borders to be lengthened.
  3. End the border selection with a right-click.
  4. Specify the lengthening in percent.
