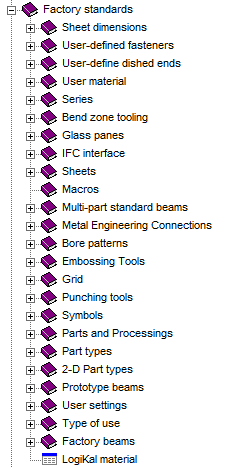

The Factory standards catalogue
2-D and 3-D parts, complete assemblies or prototype steel beams can be saved directly from a HiCAD drawing to individual factory standard catalogues (in older versions referred to as "Works standards catalogues").
These user-specific catalogues can be created, managed and edited with the Catalogue Editor.
Access to the objects managed in these catalogues is made in HiCAD via a photo-like selection system – as with the fitting of standard parts or beams and profiles.
In addition, you have the option to manage further customer-specific settings, such as the user-defined usages, textures or similiar in the Factory standards catalogue.
|
