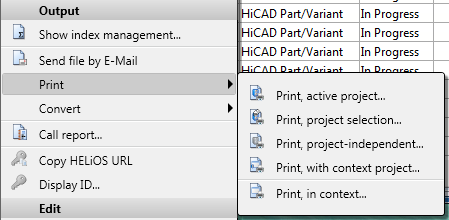

In the Document context menu beneath Output, select Print. A sub-menu with the following options will be displayed:
Print, active project...: Use this option to enter the active project in the drawing frame.
Print, project selection...: The project to be inserted in the drawing frame can be selected from a dialogue here. Only projects to which the document has actually been assigned will be offered for selection. A free selection without the corresponding document context is not possible.
Print, project-independent...: No project will be entered.
Print, with context project...: Use this option to select the project in the context of which the document context menu was called, e.g. from a Project detail mask, which needs not necessarily correspond to the active project.
Print, in context...: This option is useful if you want to print the active document from the context of the product structure. Article attributes linked to the document (which can be relevant for title blocks) will be written out here. After selection of the option, the Print Client dialogue window will be displayed.
