HELiOS Spooler Admin Tool

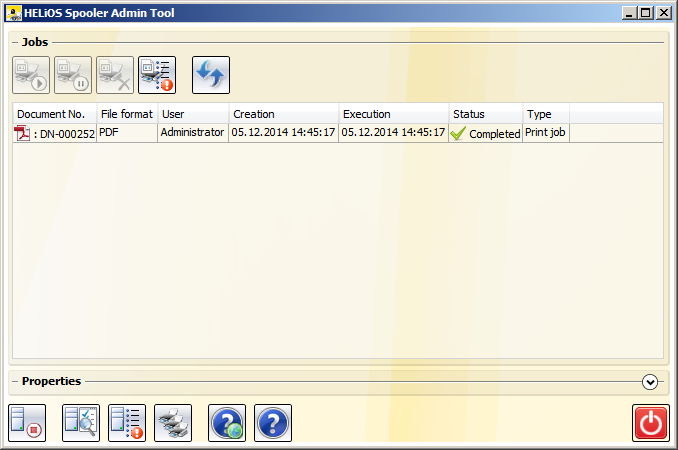

All started, currently processed or completed print jobs will be listed in in the window of the HELiOS Spooler Admin Tool, complete with the HELiOS-Document number, File format, User (Login of the user who sent the job to the Spooler). Creation (Date and time of creation of the print job), Execution (Date and time of the actual printing process), Status (New, In process or Completed) and Type.

At the top of the window, beneath Jobs , print jobs marked in the list can be paused , deleted from the list , or started . Paused print jobs will be continued with the latter function, already completed ones will be re-started. Click to refresh (update) the list.

Click to call an error list, in case that not all print jobs could be executed error-free.

If there are no jobs in the list, the functions are greyed out.

If you right-click in the list area, a context menu will open, enabling you to remove, pause or start all jobs in the list, or re-start or remove all failed jobs with one mouse click.

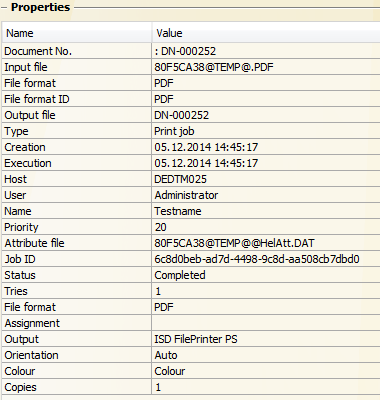

Further down you can hide or show the Properties area, where further information on the currently marked print job are shown.

At the bottom of the dialogue window, beneath Properties you can find a toolbar with the following functions:

	Stop / start server: Stops or re-starts the server service.
	Edit settings... : Calls the HELiOS Spooler Options menu.
	Show error log of server: Opens a .log file with error messages.
	Show output devices...: Displays all output devices (hardware printers, filewriters etc.) installed on the system in a list.
	Calls the Online Help. For this, you require Internet access.
	Provides information on the HELiOS Spooler.

Clicking ends the server service and closes the window.
