Exchange Grating Steps (3-D SE)

Steel Engineering > Extras > Exchange > Grating step

Use this function to exchange existing grating steps with other grating steps.

  1. Identify the grating step that you want to exchange.
  2. In the displayed catalogue, select the step that you want to use as the new grating step. Select the type and the material and confirm with OK.

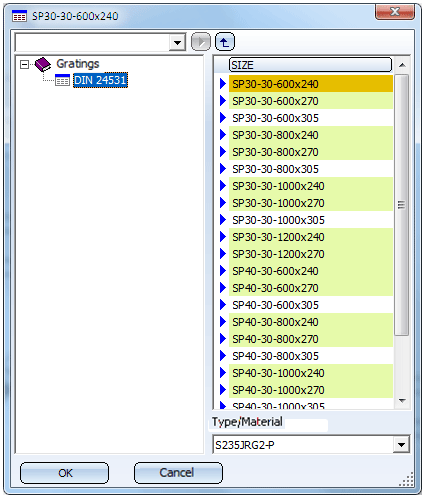

Catalogue for grating steps

The new grating step will be shown in a preview image.

  1. Specify a fitting point on the step, then specify the position of this point in the drawing.

Instead of specifying a point you can also select the origin with a right-click.



You can also call this function via the context menu: Right-click the grating step and select Exchange .
