Change Connection (3-D SE)

"Civil Engineering functions" docking window > Steel Engineering > Connections

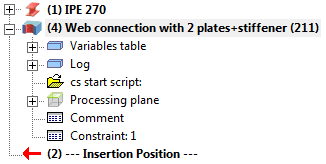

If you want to change the data of a connection subsequently, double-click the required entry in the feature log of the corresponding beam.

HiCAD immediately displays the dialogue window for the connection. Change the settings as required and exit the window with OK. The connection will be changed immediately.

Please note:

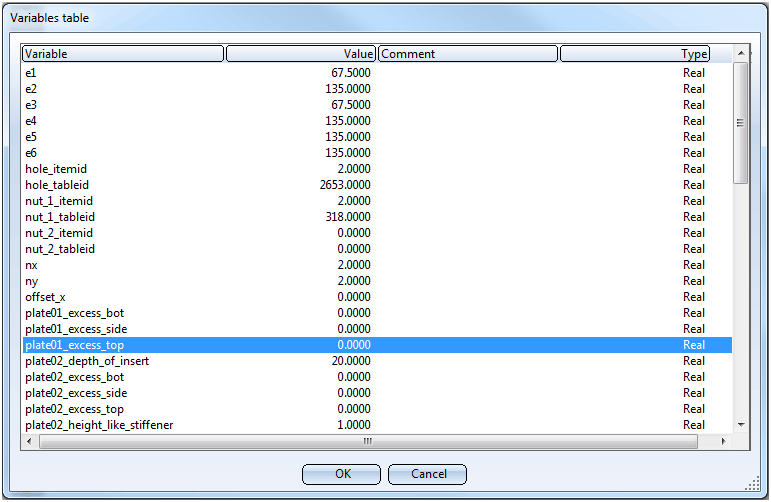

• Individual values of a connection, e.g. the projection of a plate, can directly be changed in the variables table of a feature log if desired. For example, to change the top projection of a plate, first double-click the Variables table entry. Then double-click the desired ...excess_top entry, and change the value.

• If you have processed/changed any connected beams, use the Update connections + variants in active part function to update the connection accordingly.
