Elbows (3-D SE)

Steel Engineering > Construction Aids > Bolting > Elbows

To fit an elbow pipe, proceed as follows:

1. Define a processing plane parallel to the pipe cross-section.
2. Activate the Elbows function.
3. Choose the elbow type and the dimensions of the elbow.
4. Click OK to exit the selection window.
5. Define the fitting position.

The elbow is fitted perpendicular to the processing plane.

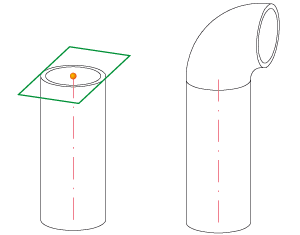

Left: Pipe with processing plane and fitting position, Right: Fitted elbow pipe
