Notch (3-D SE)

Steel Engineering > Notch

You use the functions of the Notch menu to connect one beam to another by cutting areas of the beam to fit ("notching"). The beam to be connected is assigned a notch in the process. This can be done with or without lengthening the beam to be connected. You can use the existing notch parameters or set new ones.

Notch with lengthening, current parameters

The notch is made with lengthening, using the current notch parameters. Select Steel Engineering > Management > Settings, Steel Engineering to define these parameters.

First, identify the beam to be notched and then the beam to which you want to make the connection. HiCAD automatically assigns a notch to the beam that is identified first.

Notch without lengthening, current parameters

As above, but without lengthening.

If you do not want to use the current parameters, click to open a pull-down menu with the following functions:

Notch, New parameters, With lengthening

The notch is made with lengthening. First, the Notch Parameters tab of the Steel Engineering > Management > Settings, Steel Engineering function is displayed. Here, you change the notch type, the length and height of the notch etc. If you choose OK to exit the window, the new settings are applied. These parameters are used for notches that are generated subsequently - during the current HiCAD session.

Notch, New parameters, Without lengthening

As above, but without lengthening.

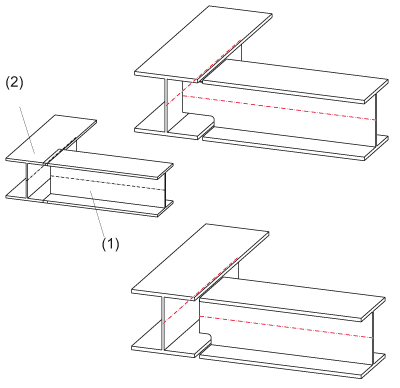

Example 1

Example 2
