Title Block Dialogue Texts for Discontinuation Symbols (P+ID)

P+ID Symbol > Dialogue text > Load data mask from symbol library

A separation symbol can take over title block dialogue texts of the sheet on which the corresponding partner symbol is located into its data mask, and thus display them as graphical texts.

The prerequisite for this is that the data mask of the discontinuation symbol contains title block dialogue types (code between 600 and 799). (please note that the data masks of the discontinuation symbols in the supplied libraries do not contain any title block dialogue types)

Example:

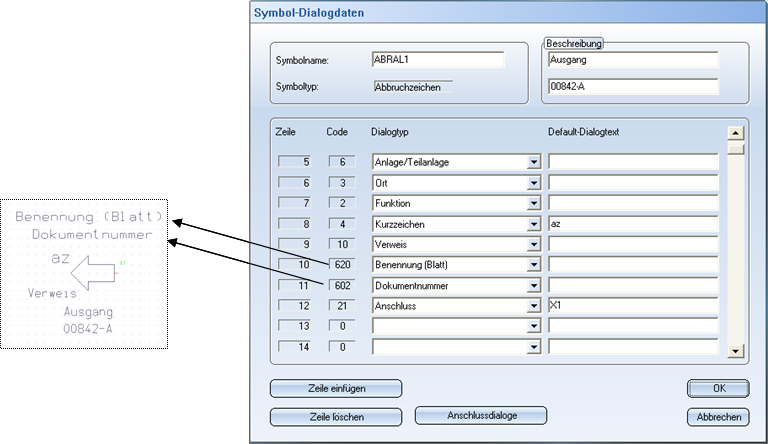

In the above example, two title block dialogue types (620 and 602) were entered in the data mask. In the symbol graphic text placeholders were added.

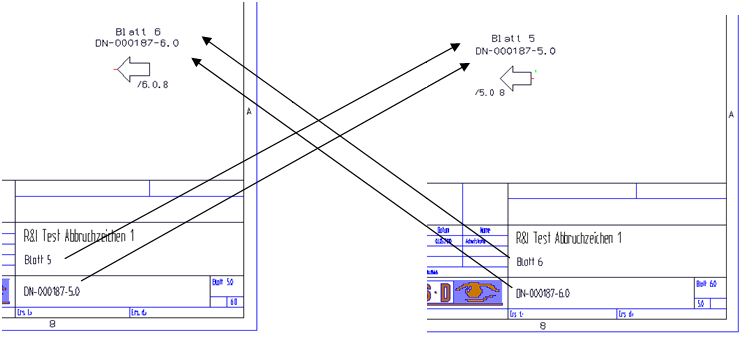

The above image shows two symbols with added texts on two P+ID sheets.
