Create Excel Template - Step 3

Now define the data cells.

  1. Place the mouse pointer on the cell below the Part Name field and click on the cell.

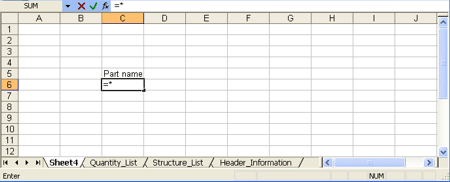

  2. Enter =* .

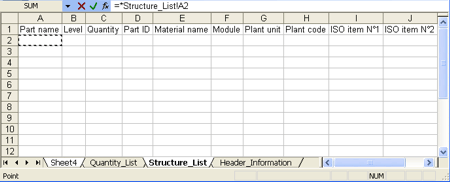

  1. Recall the Structure list sheet.
  2. Again, place the mouse pointer on the cell below the Part name field and click on the cell.

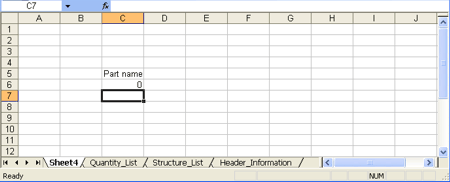

  1. Press the ENTER-key and confirm the query with YES.

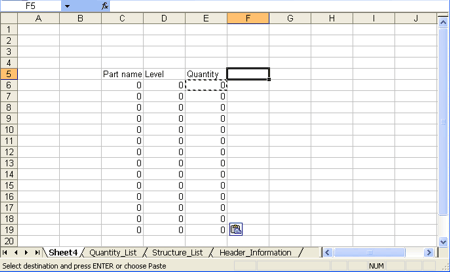

  1. Copy the cell with the value 0 (Place mouse pointer on cell, click on cell and press CTRL + C).

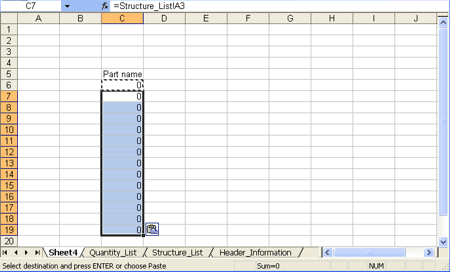

  2. Specify the number of rows for output by selecting the required cells below the cell with value 0. Now press CTRL + V to insert the previously copied value in the cells.

The definition of the Part Name columnis now completed.

Execute Steps 2 and 3 to define the columns Level and Quantity.
