Mitre, with Lengthening (3-D SM)

Sheet Metal > Mitre > With lengthening

Use this function to mitre-cut and lengthen flanges which, while they do not overlap, have the same length. The flanges must be located in one plane.

  1. Identify the longitudinal edge of the front sides of the two flanges.

The flanges are lengthened and a mitre inserted. You can now cut more flanges or use the middle mouse button to end the function.

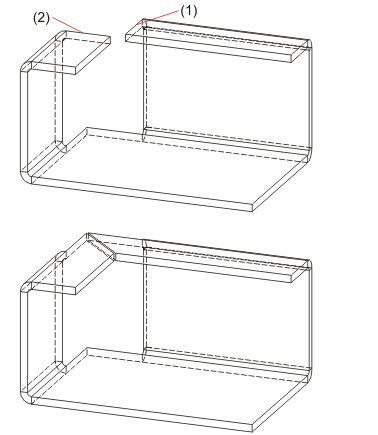

(1) Longitudinal edge of the first front side
(2) Longitudinal edge of the second front side
