Mitre, through Point, with Lengthening (3-D SM)

Sheet Metal > Mitre > wLengthen > Mitre, through point (individual), with lengthening

Use this function to mitre-cut (and lengthen) flanges that do not overlap and do not have the same length. The flanges must be located in one plane.

Identify the two flanges from the longitudinal edge of the front side.

This automatically places the first intersection point of the mitre. It lies in the theoretical extension of the internal edges of the flanges.

Then, activate the second intersection point.

If you press the middle mouse button instead of activating the second point, the angle bisector is used as the mitre cut.

You can now cut more flanges or use the middle mouse button to end the function.

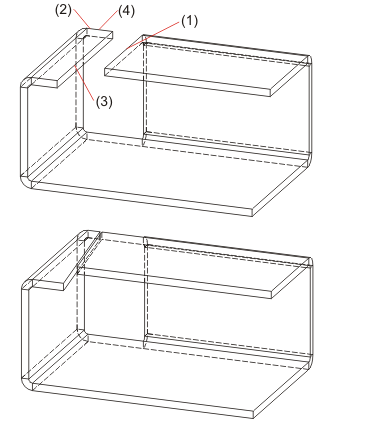

(1) Longitudinal edge of the first front side
(2) Longitudinal edge of the second front side
(3) Automatically placed intersection point
(4) Second intersection point
