Mitre (Plane), with Lengthening (3-D SM)

Sheet Metal > Mitre > wLengthen > Mitre (plane) with lengthening

Use this function to mitre-cut sheets, bend zone and flanges in one step.

The flanges can be located in different planes. The flanges can overlap, but do not need to do so.

Choose the longitudinal edge of the front side of each of the two flanges.

All attached flanges and bend zones are mitre-cut and, if required, lengthened.

You can now cut more sheets or use the middle mouse button to end the function.

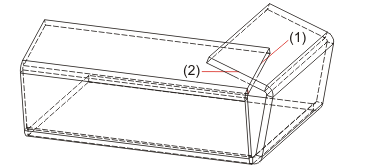

(1) Longitudinal edge of the first front side
(2) Longitudinal edge of the second front side

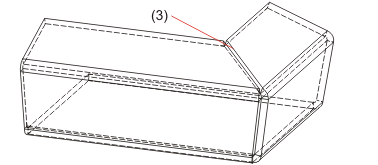

(3) Sheets, bend zones and flanges mitre-cut

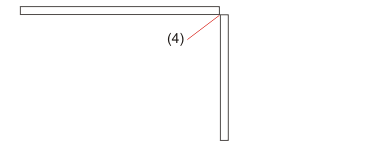

(4) Top view of the mitre cut
