Close Corner, With Circular Cutout (3-D SM)

Sheet Metal > Process corner > Close corner, with circular cut-out

Use this function to close the open corners that are created when adding flanges to a sheet. A circular cut-out in the bend zone will be created automatically.

Identify the abutting edges of both sheets.

The corner is then closed.

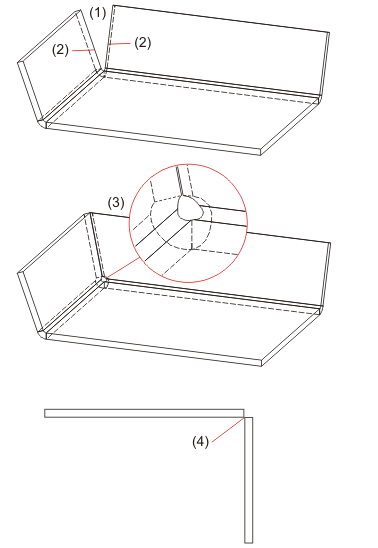

(1) Open edge
(2) Abutting edge
(3) Closed corner with cut-out
(4) Top view of the closed corner
