Close External Corner (3-D SM)

Sheet Metal > Process corner > Free > External

Sheet Metal > Process corner > Closed > Bend zone closed, External

The Close corner with projection, bend zone free function lengthens the first sheet up to the outer edge of the second sheet. If you have chosen the Close corner with projection, bend zone closed function, the bend zone is also lengthened.

1. Identify the front edges of both sheets.

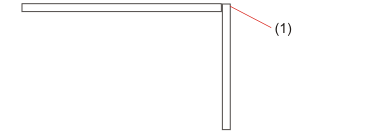

(1) The front edge identified first is lengthened or shortened, as applicable, up to the external edge of the second sheet.
