Part master

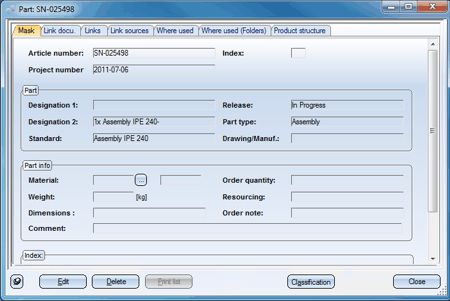

Displays the part master of the active part in the Part dialogue window.
The dialogue window consists of several tabs. Frequently used functions, such as Edit, Delete etc. can also be called via the buttons. Further editing functions can be accessed via the context menus (RMB) of window and tabs.
Clicking the arrow
opens a pull-down menu with further part master functions.
Part master, Select + assign
Use this function to assign a part master that already exists in the database to the active part. If a part master has already be assigned to the part, you can also delete this assignment if desired.
Assign part master, of drawing
Use this function to assign the part master of the active drawing to the to the active part.
Part master, Delete assignment
Use this function to delete the part master of the active part. The part itself will be retained.
Document master
Displays the document master of the active part in the Document dialogue window. Frequently used functions, such as Edit, Delete etc. can also be called via the buttons. Further editing functions can be accessed via the context menus (RMB) of window and tabs.

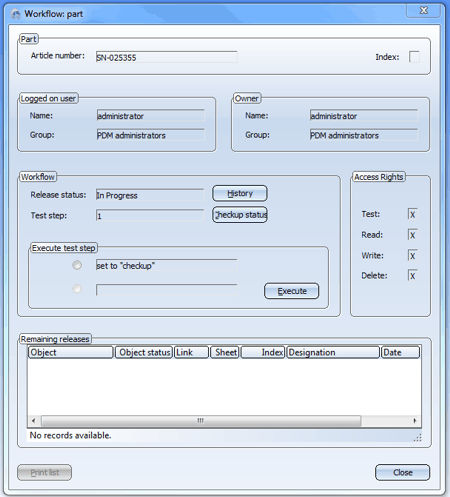

Workflow release
This function provides you with Workflow-related information on the active part and the linked documents, such as the current Release status or the Access rights. Furthermore, the Workflow can be displayed as a graphic, and clicking the History, button displays a printable list view of the Workflow processes.Clicking the Checkup status button opens the Workflow defined in the HELiOS configuration. The active status is marked red and can be changed with a mouse-click in the window below.
If the Workflow is a Role Workflow, two additional buttons will be displayed:
- Checklist: Calls the attributes of the checklist, if there are any.
- Roles: Shows the role assignments of the current and the following workflow step.
In the Execute test step section you can request the next test step (e.g. Request checkup).
Linked drawing
Use this function to load drawings which are linked to the active part.
