Clearly arranged, well-structured workshop and detail drawings are absolutely essential to a safe and reliable planning and production. The automatic, optimised generation and management of these important documents in HiCAD is based on state-of-the-art technologies and ensures - even when dealing with complex constructions - a rapid generation of the required production documents, including production-oriented dimensionings and annotations.HiCAD automatically detects the required number of Steel Engineering parts for detail drawing creation and distributes the production views on the drawings according to practice-oriented logics.

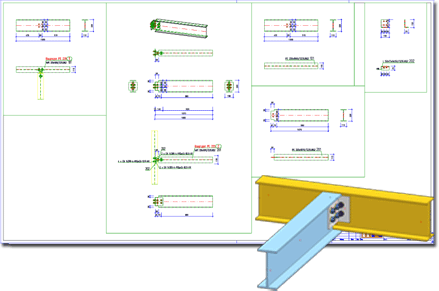

Example of a workshop drawing (bottom right: original model)

Automatic drawing derivation - Available functions and options:

• Powerful functionalities for the creation and management of drawings
• Management of all detail views in one view group - with view-comprehensive parameters
• Automatic, collision-free and space-saving arrangement of views and view groups, item numbers, annotations, dimensions etc.
• Alignment of views according to fitting position and perpendicular to sections
• Automatic spreading of production views over several drawing sheets with drawing frames
• Automatic, collision-free annotation of parts
• Automatic integration of assembly-BOMs into drawings
• Integrated drawing creation for sheet metal parts
• Creation of dimensioned sectional views for welded-on parts
• Depth limitations for sectional and detail views
• Individual views, sections and details
• Individually supplemented dimensionings and annotations
• Displayable grid axes and associative axis annotations
• Displayable part environment with flexibly configurable representation parameters
• Individually configurable dimensioning rules for each dimension in the workshop drawing
• Type of use-dependent configurations (e.g. for beams, girders, transoms, railings etc.)
• Shaded views in the workshop drawing
• Extensive reworking and supplementing options for the drawings

You benefit from all these advantages when using the BIM-PLM suite.
