Drawing Attributes

Drawing > Properties > Attr.

This function enables you to assign certain attributes such as

• order and customer information,
• drawing and sheet number,
• designations,
• additional texts or
• author information

to drawings if you are working without the HELiOS database. These attributes are taken into account, for example, in the bill of materials.

To enable you to enter the attributes, the Drawing attributes input window is displayed.

1. Enter the desired additional information.
2. Apply the entered data by clicking the OK button or pressing the Enter (Return) key.

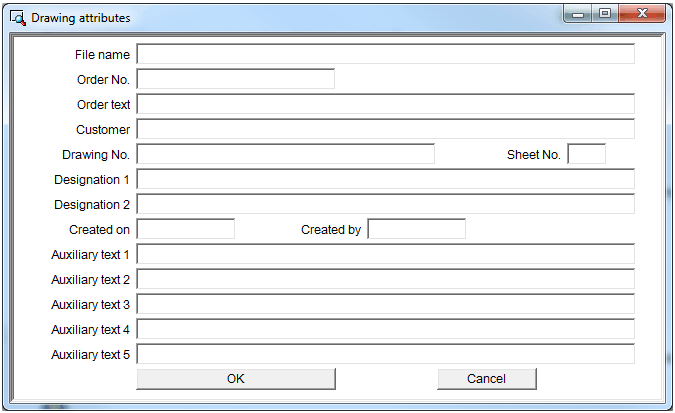

The Drawing attributes dialogue window

Click below the Attr. icon to open a pull-down menu with functions for the changing of drawing attributes.

If you press ESC orCancel, the function is aborted and the changes are not applied.
