Intersection Points

• Genuine and theoretical intersection point
• Edge-surface intersection point (only 3-D)
• Intersection point for 2-D/3-D lines (only 3-D)

Intersection point (S, S2)

Intersection point ,

HiCAD finds the intersection point of two lines that lies closest to the cursor position.

The option identifies the theoretical intersection point lying on the extension of two lines.

1. Identify the two graphical elements. In the case of arcs, for example, HiCAD calculates all intersection points of the two graphical elements including their extensions. If several intersection points exist, they are made available in turn for selection.
2. Confirm the desired intersection point.

You cannot use this option to detect the intersection point of two conic sections or a circle with a conic section. Use option S for this.

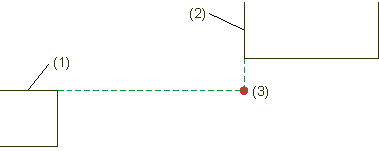

(1) First line, (2) Second line, (3) Theoretical intersection point

Edge-Surface intersection (KF)

Edge-Surface intersection

You define the intersection point of a 3-D edge with a surface here.

1. First choose the edge.
2. Then define the surface by identifying two edges.

(1) Edge, (2) First edge for surface, (3) Second edge for surface, = Found point

Intersection point for 2-D/3-D lines (SD)

Intersection point 2-D/3-D lines

You use this option to define the intersection point of 2-D and 3-D lines.

Identify:

• Two 3-D edges

The point found is the intersection point of the two edges.

• Two 2-D graphical elements

The point found is the intersection point of the two graphical elements. Next, you need to enter the z-coordinate of this point.

• One 3-D edge and one 2-D graphical element

The point found is the projection of the 2-D intersection point of the two elements onto the 3-D edge.

(1) Edge, (2) First edge for surface, (3) Second edge for surface, = found point
