Calling Functions

In general, there are various options for calling a function.

Calling via the multifunctional toolbar (Ribbon)

To call a function, activate the required tab, then click the appropriate icon. You should bear in mind that many functions have sub-functions. These are indicated by a small triangle symbol pointing downwards . Click on the symbol to open a pull-down menu with the corresponding sub-functions.

Example

Calling via a context menu

If you place the cursor on an item in the ICN or on an object in the drawing and press the right mouse button, a so-called pop-up menu or context menu with the object-relevant functions is displayed. For many functions, context menus can also be called by a right-click within the function dialogue. In such situations, the user guidance (info toolbar) usually displays an appropriate text (RMB = Extended selection).

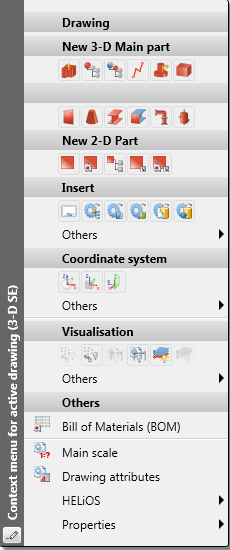

Context menu for the entire drawing

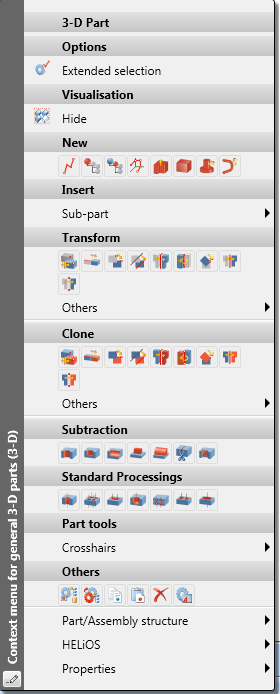

Context menu of a 3-D part

After calling a function, HiCAD prompts you, via the user guidance (info bar) or via an input window, to enter further data that bare required for the execution of the selected function. This can, for instance, be an the identification of a graphical element or the entry of a rotation angle. Only after input of all required data will the function be executed.

Context menus, too, can contain sub-menus, which are indicated by a small arrow pointing to the right.. To open a sub-menu, simply move the mouse pointer on a menu item that contains such an arrow.

Please note:

When you right-click an object, the displayed context menu depends on the object type and the current identification mode.

To close a menu, simply left-click outside the menu.
Various functions, e.g. modification functions for drawing details , can be called via different functions.
Most functions can be undone with Undo. An exception is the selection of display windows. In this case, there are special functions for restoring the previous display window.
To abort a function, press the middle mouse button (wheel or both mouse buttons in case of a mouse with two buttons). Alternatively, you can also press the ESC key on the keyboard.
In many cases, a continued work flow requires the answering of questions. In most cases, there are three reply options:
Yes, OK The action is accepted as displayed.
No Alternative displays are provided.
Cancel The action is cancelled, i.e. it is not carried out.
You can customise context menus by hiding unneeded individual functions. To do this, click the icon at the bottom left corner of the context menu.
