Point Options Menu

HiCAD provides a number of 2-D and 3-D point options for defining points. You can always activate the Point options menu if HiCAD requests the specification of a point.

You activate the menu

• by double-clicking,
• by pressing the left mouse button or
• by pressing the Return key.

The Autopilot must not be active, i.e. it must not display a snap point, or it needs to be switched off. If the Autopilot displays a snap point, use the right mouse button to activate the menu. The content of the menu depends on whether the menu is activated within a 2-D or a 3-D function!

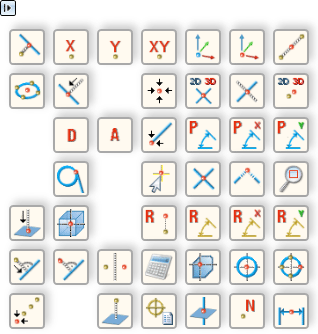

The Point Options menu (here: 3-D)

Click the icon to change the size of the icons, or to hide point options that you do not need. The following menu will be displayed:

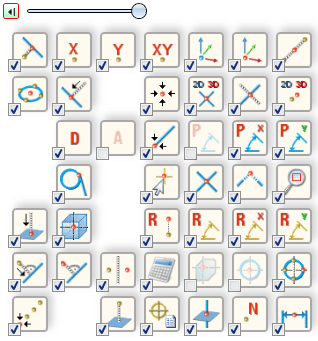

Hide/Show point options, select icon size

• Select icon size

You can change the icon size via the slider at the top of the menu.

• Hide icons

Point options can be hidden and re-displayed by deactivating or activating the corresponding checkboxes.

Click the icon to get back to the Point options menu.

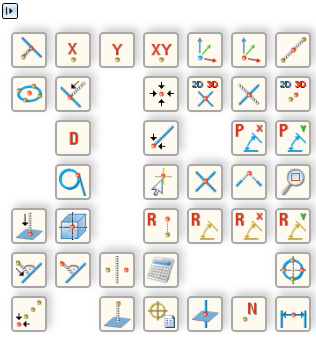

Left: Original 3-D Point options menu; Right: Point options menu with hidden icons

You can change the time interval between mouse click and display of the Point options menu in System Settings:

1. Click on the icon, then select Settings.
2. Select the Basic settings > General > Operation/Display folder.
3. Change the value of the Wait time...entry.
