Part Type: Pipe Clamp (PE)

Rules for the creation of individual Plant Engineering parts (KRA files)

Named isolated points

Designation	Purpose	Comment	Position in coordinate system
!	Fitting point	Reference point placed on the centre line of a pipe during fitting	in origin (0,0,0)
2	Auxiliary point		X < 0, Y = 0, Z = 0

Required attributes for entries into database or catalogue

Values need to be entered for at least the following attributes:

Attribute	Description
BENENNUNG	Designation of part
NORMBEZEICHNUNG	Standard designation of the part. An entry is mandatory, even if the part corresponds to no standard.
NENNWEITE	Nominal diameter

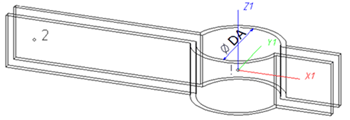

D_AUSSEN	Outer diameter of pipe (see DA in drawing)

Additionally (only if the corresponding standard uses nominal diameters in inches):
NPS_INCH	Nominal diameter (inches) (e.g. 1 1/2‘', the '' consists of two '' characters)

When working with the HELiOS database, please pay attention to the correct classification!
