Description
N2605V2
Elbow DIN 2605
Graphic
ASME_ELBOWSR
Elbow (small radius) ANSI/ASME B16.9
ASME_ELBOWLR
Elbow (long radius) ANSI/ASME B16.9
N2440V2
Pipe DIN 2440
N2441V2
Pipe DIN 2441
N2448V2
Pipe DIN 2448
N2449V2
Pipe DIN 2449
ASME_PIPE
Pipe ANSI/ASME B36.19M
N2615T1V2
T-piece DIN 2615 Part 1
N2615T2V2
T-piece DIN 2615 Part 2
ASME_TEE
T-piece ANSI/ASME B16.9
N2616T2V2
Reducer (concentric) DIN 2616 Part 2
ASME_REDUCON
Reducer (concentric) ANSI/ASME B16.9
N2616T2EX.
Reducer (eccentric) DIN 2616 Part 2
ASME_REDUEX
Reducer (eccentric) ANSI/ASME B16.9
N2617
Cap DIN 2617
ASME_ENDCAP
Cap ANSI/ASME B16.9
N2618K
Saddle connection, short DIN 2618
N2618L
Saddle connection, long DIN 2618
N2619
Weld-in pipe bend, DIN 2619
N2631V2
Flange DIN 2631
N2633V2
Flange DIN 2633
N2635V2
Flange DIN 2635
N2637V2
Flange DIN 2637
ASME_FLANGE150
Flange ANSI/ASME B16.5, 150 lbs
ASME_FLANGE300
Flange ANSI/ASME B16.5, 300 lbs
ASME_FLANGE600
Flange ANSI/ASME B16.5, 600 lbs
N2641GR1
Pre-weld border with loose flange, DIN 2641, series 1
N2642GR1
Pre-weld border with loose flange, DIN 2642, series 1
N2527B6
Blank flange DIN 2527, Form B, PN 6
N2527B10
Blank flange DIN 2527, Form B, PN 10
N2527B16
Blank flange DIN 2527, Form B, PN 16
N2527B25
Blank flange DIN 2527, Form B, PN 25
N2527B40
Blank flange DIN 2527, Form B, PN 40
N2527E64
Blank flange DIN 2527, Form E, PN 64
N2527E100
Blank flange DIN 2527, Form E, PN 100
N2527T6
Blank flange DIN 2527, Form T, PN 6
N2527T10
Blank flange DIN 2527, Form T, PN 10
N2527T16
Blank flange DIN 2527, Form T, PN 16
N2527T25
Blank flange DIN 2527, Form T, PN 25
N2527T40
Blank flange DIN 2527, Form T, PN 40
ASME_BLINDFLG150
Blank flange ANSI/ASME B16.5, 150 lbs
ASME_BLINDFLG300
Blank flange ANSI/ASME B16.5, 300 lbs
LHS42_ALL
LISEGA Horizontal clamp Type 42
LHS43_ ALL
LISEGA Horizontal clamp Type 43

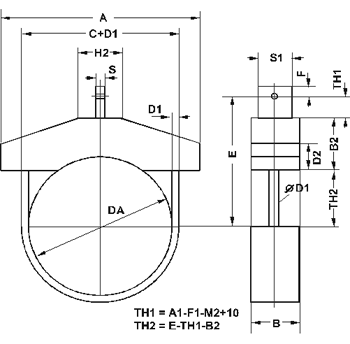

LHS44B_ ALL
LISEGA Horizontal clamp Type 44 (belt)

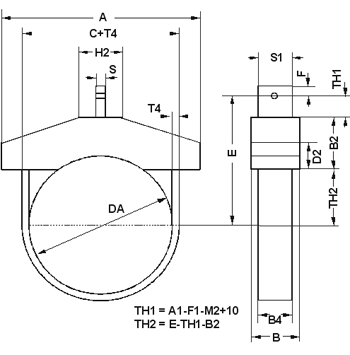

LHS44G_ ALL
LISEGA Horizontal clamp Type 44 (belt)

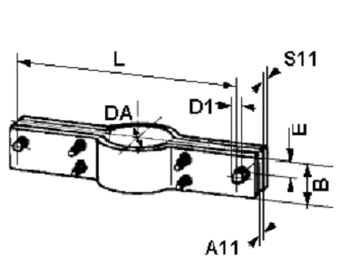

LVS45_ ALL
LISEGA Vertical clamp Type 45

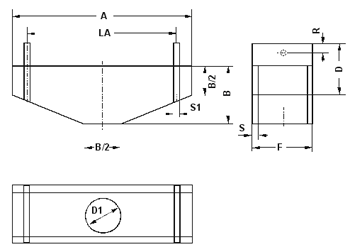

LVS46_ ALL
LISEGA Vertical clamp Type 46

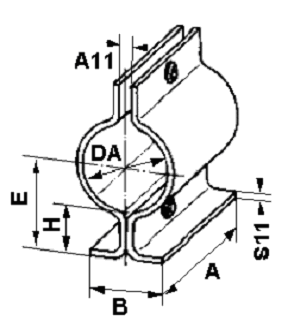

LRL49_1_ ALL
LISEGA Pipe base Type 49.1/2

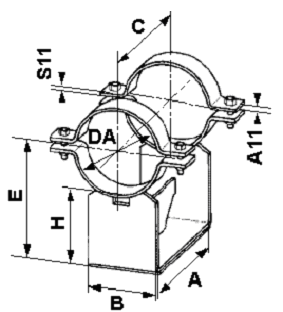

LRL49_3_ ALL
LISEGA Pipe base Type 49.3/4/5
