Database Enhancements, Version 1600: Generate BESTELLVERMERK (=ORDER_NOTE) Attribute (PE)

Use the external tool VarDbAttConfig.exe to add the HELiOS part attribute BESTELLVERMERK (=ORDER_NOTE) to the variants that already exist in the database. . You can find this tool in the HiCAD / EXE sub-directory.

1. Start the tool VarDbAttConfig.exe with a double-click.

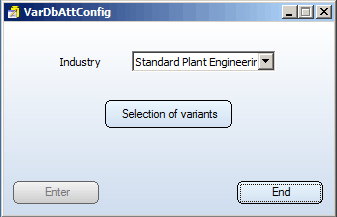

2. After starting the tool, select the Industry - Standard Plant Engineering or Air ducts - and click the click the Selection of variants button.

Select industry

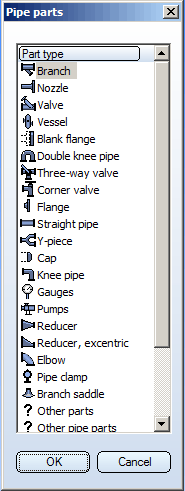

3. Choose a part type - either double-click the desired part or select it with a single click and confirm with OK.

Select part type

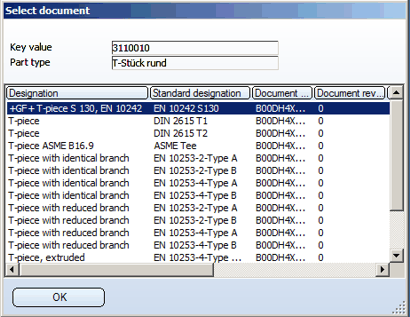

4. Select one or several variants and click OK.

Select variants

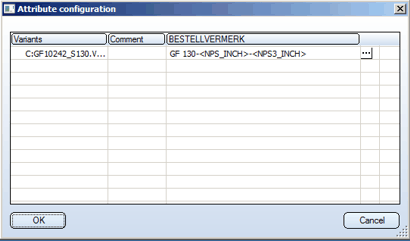

5. In the Attribute configuration window, the attribute contents of the variant are listed in the BESTELLVERMERK (=ORDER_NOTE) column. If required, you can modify them via a double-click.

Attribute configuration

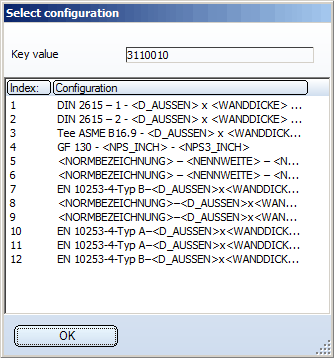

Click the icon to select a saved article number configuration. The corresponding configuration files nnnnnn.*.DesignationConfig.txt are located in the HiCAD sub-directory PlantParts\CatSearch. Double-click a configuration, or select it with a single click and confirm with OK.

Select configuration

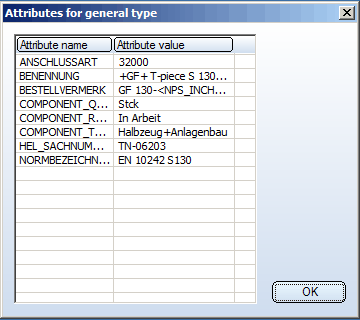

If you right-click the name of a variant file, the attributes belonging to this variant are displayed.

Attributes of the variant

6. After exiting the Attribute configuration dialogue window with OK the start window will be displayed again. Click the Enter button to enter the attribute values into HELIOS.
7. Click the End button to end the program.
