Part Structure of a Pipeline (PE)

Part names
When automatic procedures are used to create and assign parts to pipelines in HiCAD 3-D Plant Engineering, part names are automatically generated. This applies, for example, to part groups:

Part structure
When you create a pipeline, HiCAD automatically creates the part structure according to conventions for part names.

Examples:

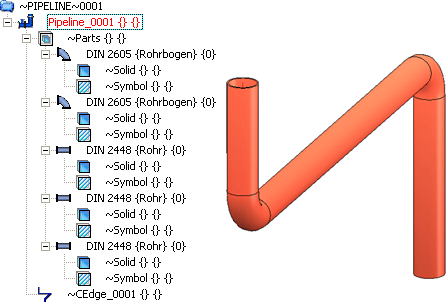

Structure and graphic of a layout plan

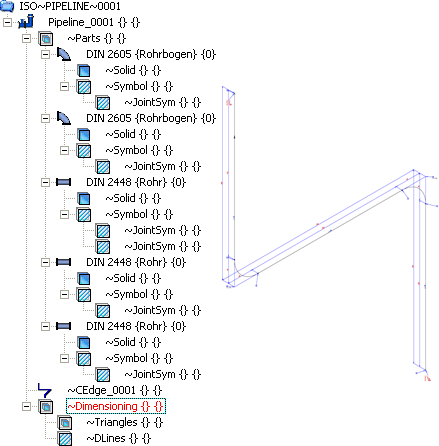

Structure and graphic of the corresponding pipeline isometry

)

HiCAD always inserts automatically exchanged parts on a level subordinate to the ~Parts (Pipeline) part in part structure.
